Aktive 25/15
The Aktive 25/15 model range is for cases where the door leaf needs to be push opened from the viewing side. For this the door frame requires a half track
About the product
The Aktive 25/15 concealed door frame is for rebated leaves 40 mm thick and serves as a “reverse version”. That is, for push opening. The Aktive 25/15 door frame can be used with drywall and masonry partitions.
The door frame comes with 3 hinges (for heights up to 2,100 mm) and a combined counter-plate and lock for securing the door leaf. For heavier doors, 4 hinges or more are used. The door frame has a soft PVC sealing for silent closing.
JAP concealed door frames are recommended for standard doors with a thickness of 40 mm made by the majority of manufacturers.
We also produce door frames without door headers or for sloped ground spaces. The maximum height of this door frame is 3,700 mm with optional custom width and height dimensions. The door frame is made in anodized aluminium, or for extra charge the customer can select a paint colour from the RAL K7, NCS or JAP Metallic swatch books. The Aktive 25/15 door frame has a 5-year warranty.

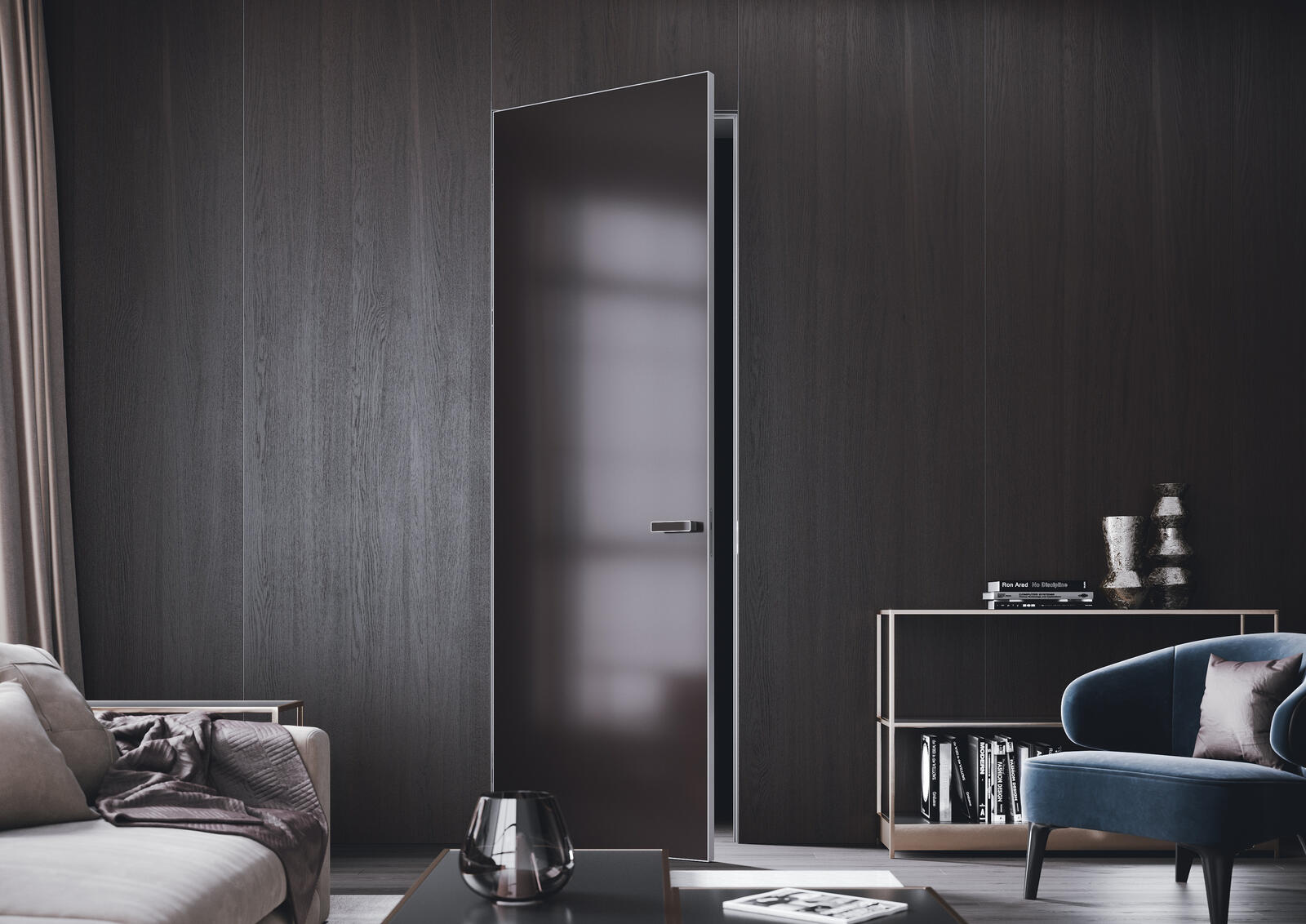

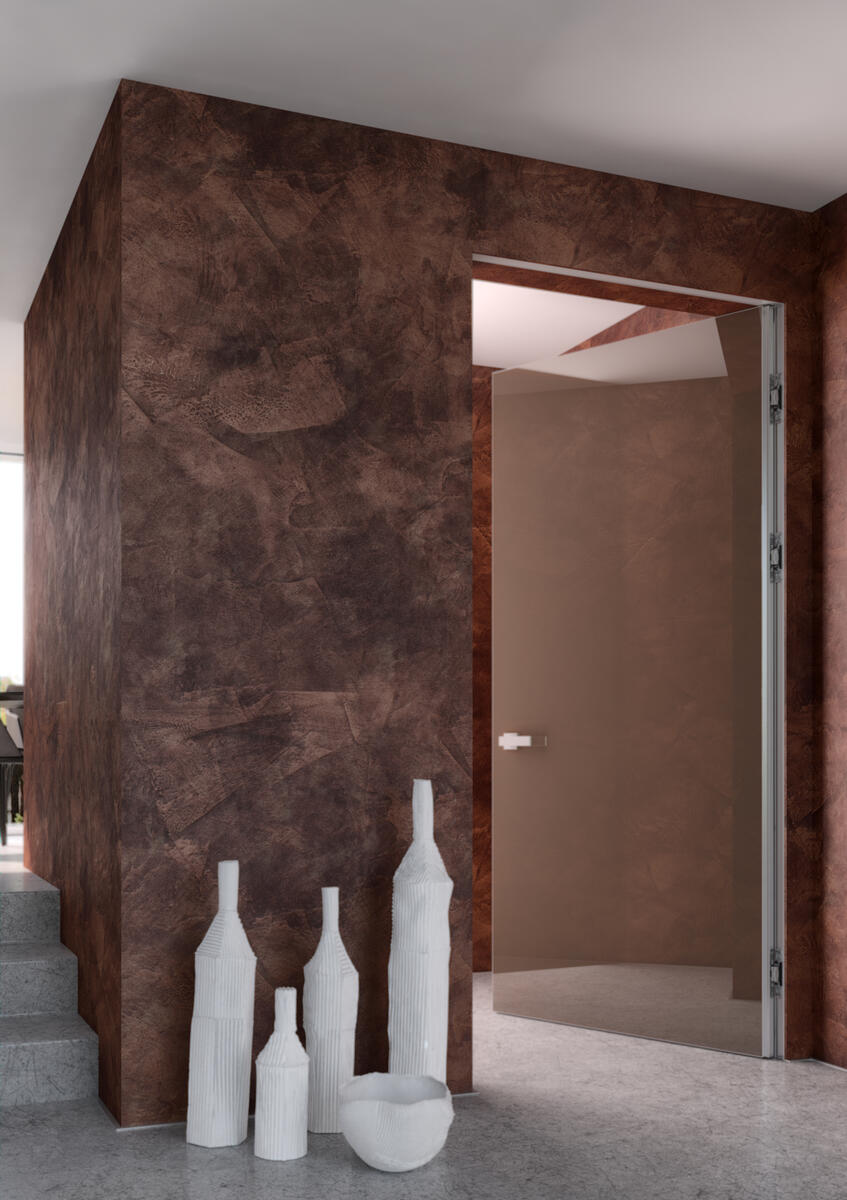

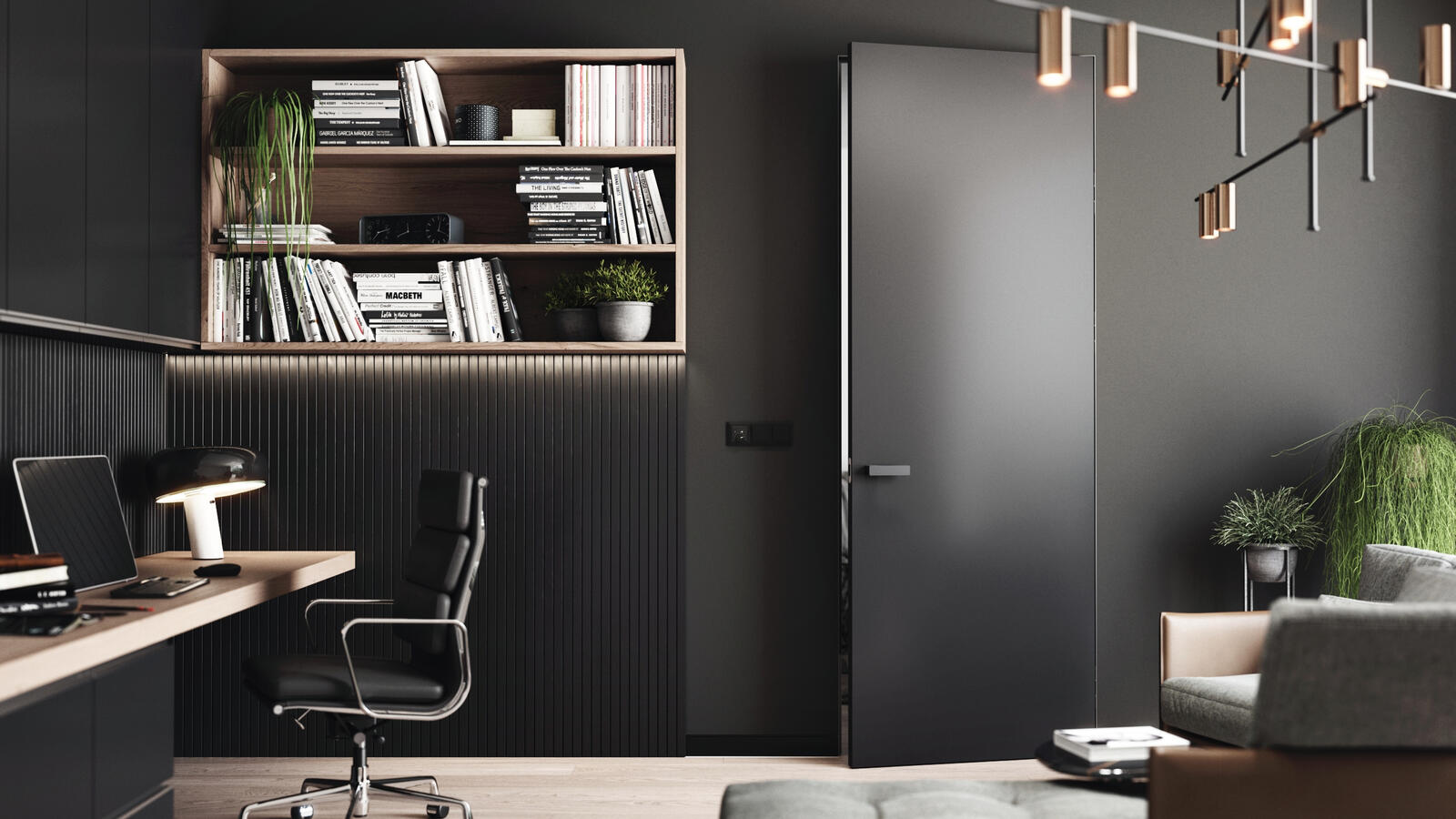

Gallery / inspiration

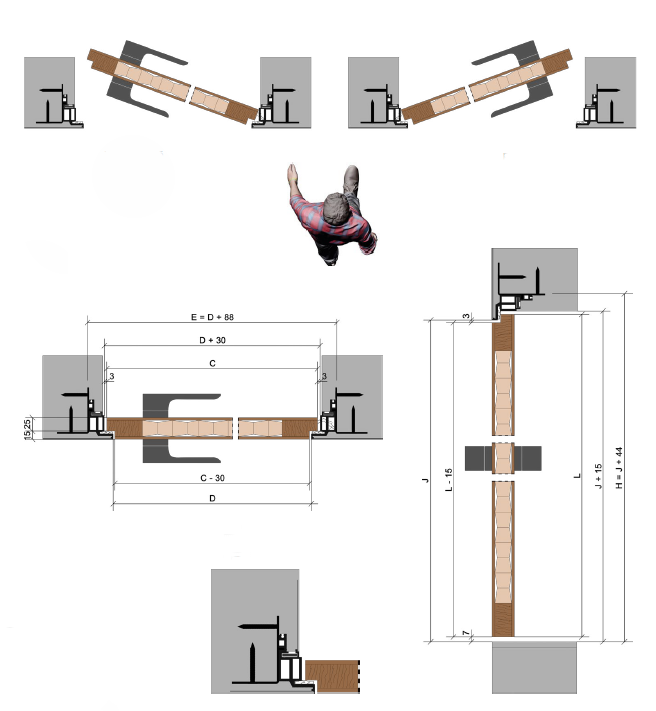

Technical information
| Standard width of passage | according to standard door leaf dimensions from JAP, Sapeli, Masonite, Solodoor, Porta Door and others |
| Standard height of passage | according to standard door leaf dimensions from JAP, Sapeli, Masonite, Solodoor, Porta Door and others |
| Custom passage height | 1,975 - 3,450mm |
| Minimal thickness of finished crossbar | 100 mm |
Manuals, certificates
Materials
- anodized aluminium
Which door to use in the door frame
- wood
- Master
- Clever
