Efekta door frame

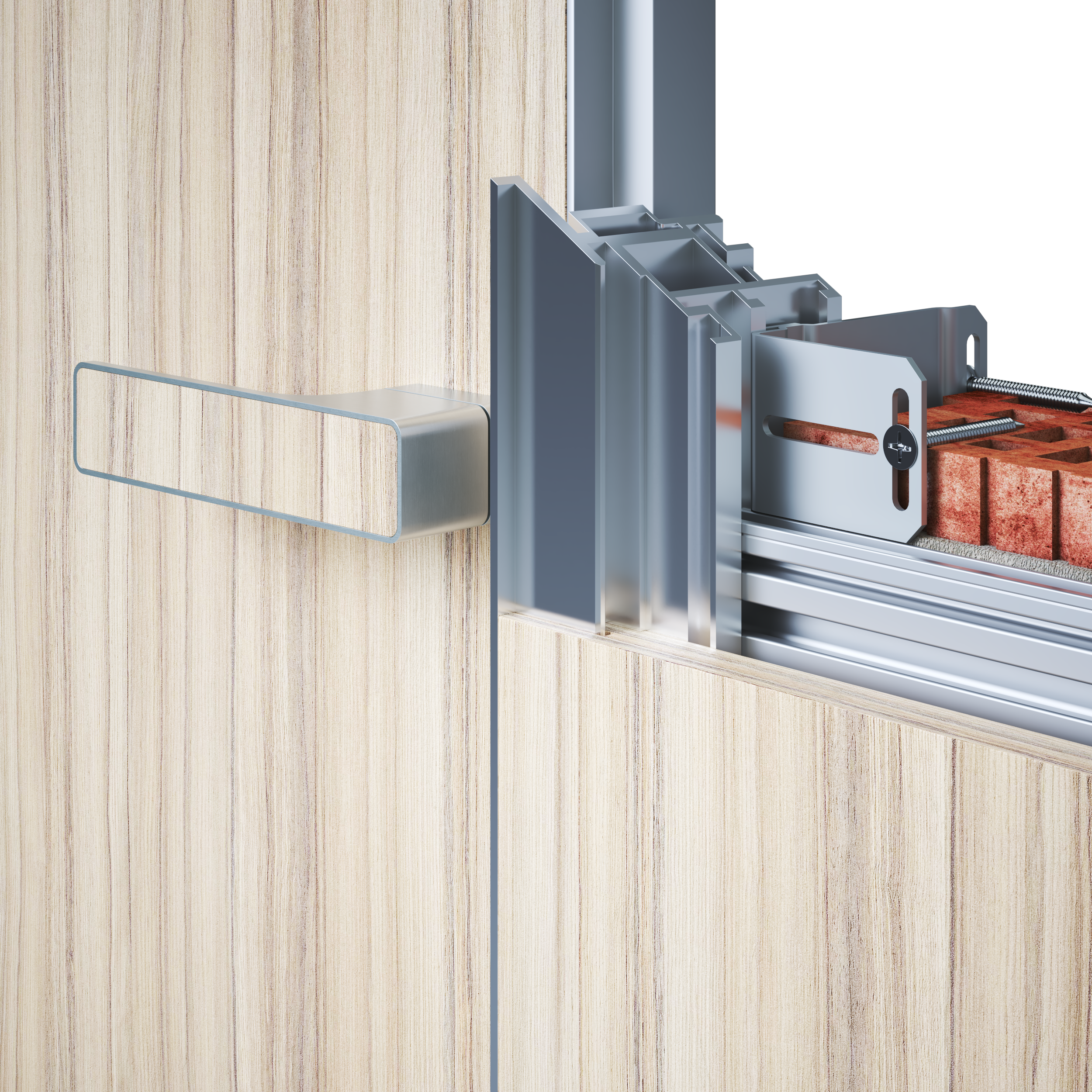

An Efekta 25/15 or 40/00 concealed door frame matches in one visual plane a wall cladding and a hinged door leaf installed into it. Designed so that a wall cladding can be attached to it, allowing the door passage to be integrated and a door leaf installed. It provides two-sided opening, i.e. using both Master 40/00 and Master 25/15 doors. For the Efekta concealed door frame, use of Master doors is recommended, which can use the same surface material as on the wall cladding to achieve the desired design effect in the interior. Standard wooden doors can also be used.

The Efekta concealed door frame can be used with masonry or drywall partitions. The door frame comes with 2 hinges (for heights up to 2,100 mm) and a combined counter-plate and lock for securing the door leaf. For heavier doors, 3 hinges or more are used. The door frame has a soft PVC sealing for silent closing.

We also produce door frames without door headers (door leaf to the ceiling). We offer door frame heights to 3,700 mm. We also produce nonstandard widths and heights. The door frames are made of anodized aluminium and can be painted according to the RAL K7, NCS and JAP Metallic swatch books at extra charge. The Efekta 25/15 or 40/00 concealed door frames have a 5-year warranty.

• wood
• Clever
• Master

• anodized aluminium
