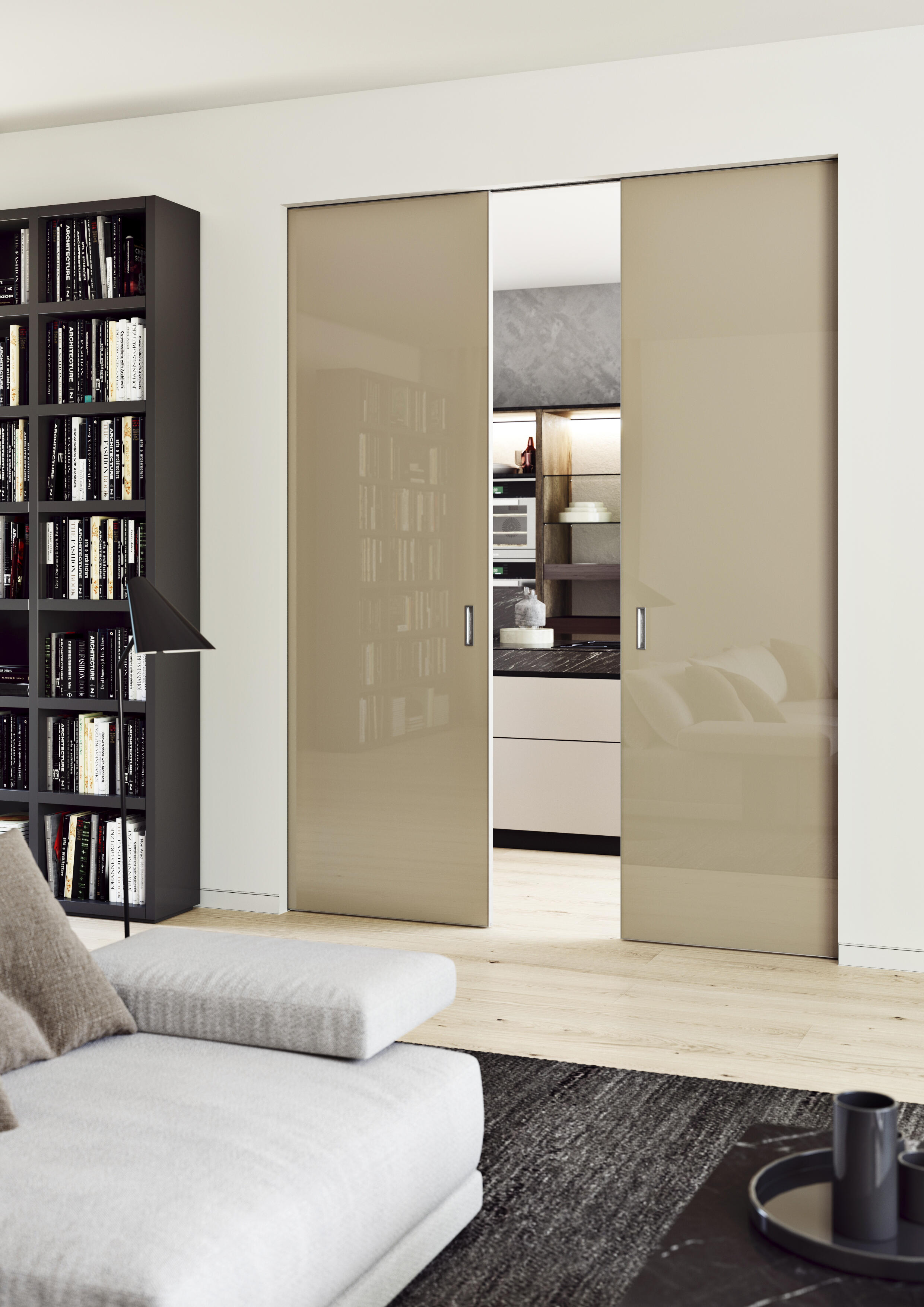

Aktive II Komfort

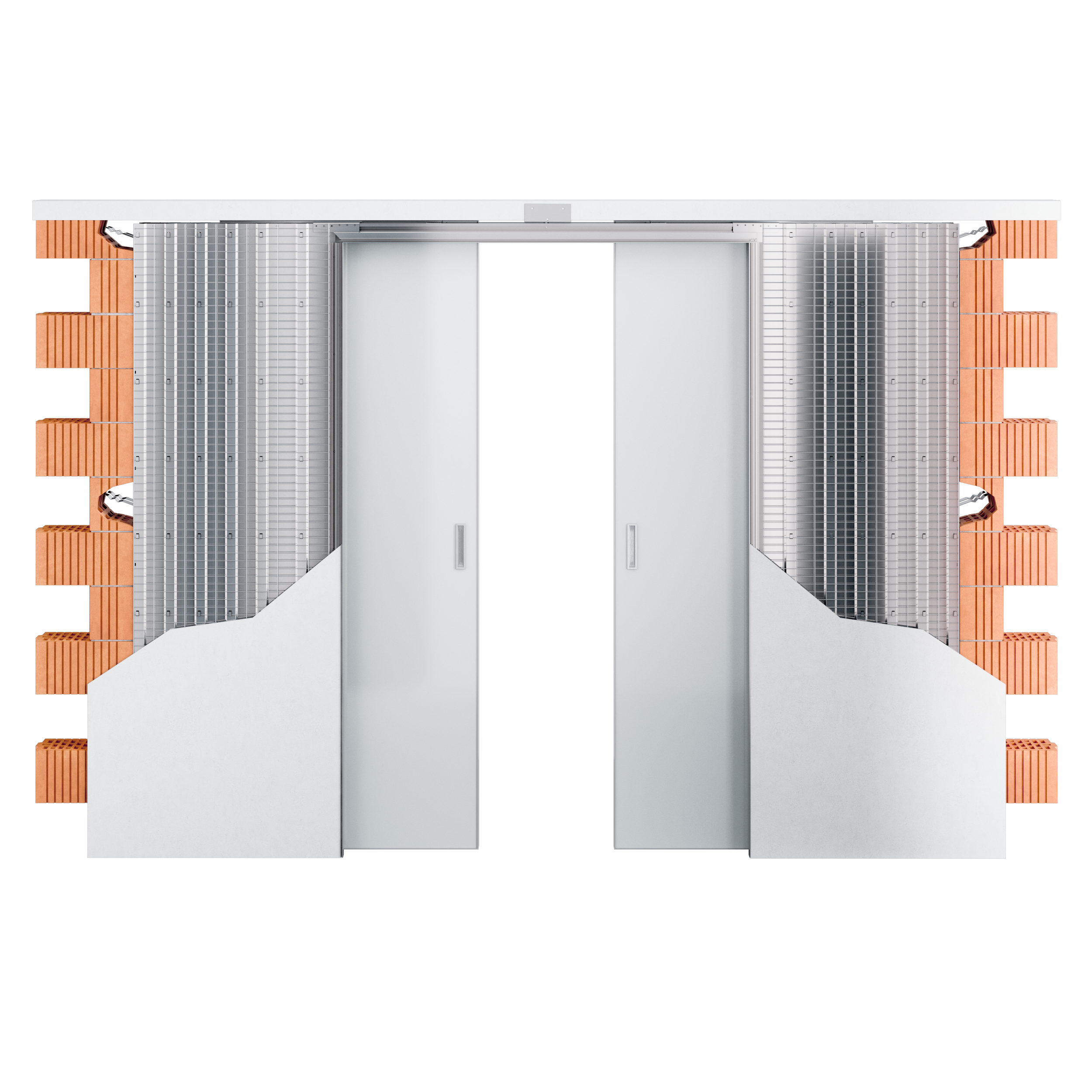

Unlined door frame without a lining, for double-leaf sliding doors. Designer model, ideal for minimalist interiors. The casing is adapted such that its hidden construction creates the edge of the passage opening, and if the customer wishes, can be hidden under the finish surfacing of the partition. The movement of the wooden door leaves is synchronized with this type of pocket door frame — a synchronizing mechanism is included in the price. We do not provide the synchronizing mechanism kit with glass door leaves. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load.

The Aktive Komfort casing is for wooden, all-glass, Master or Idea doors. The casings are designed to fit into the Aktive range of concealed door frames. Entire casing made of quality galvanized sheet metal and aluminium profile.

• Intended for a minimum finished partition thickness of 125 mm or 150 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• a synchronizing mechanism is included,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

At extra charge:

• we lacquer according to the RAL K7 and NCS swatch books
• for suspension of the door leaf, an assembly kit for wooden or glass doors must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium profiles
• aluminium rail

Painted according to swatch book at extra charge

• RAL K7
• NCS
