Latente Komfort

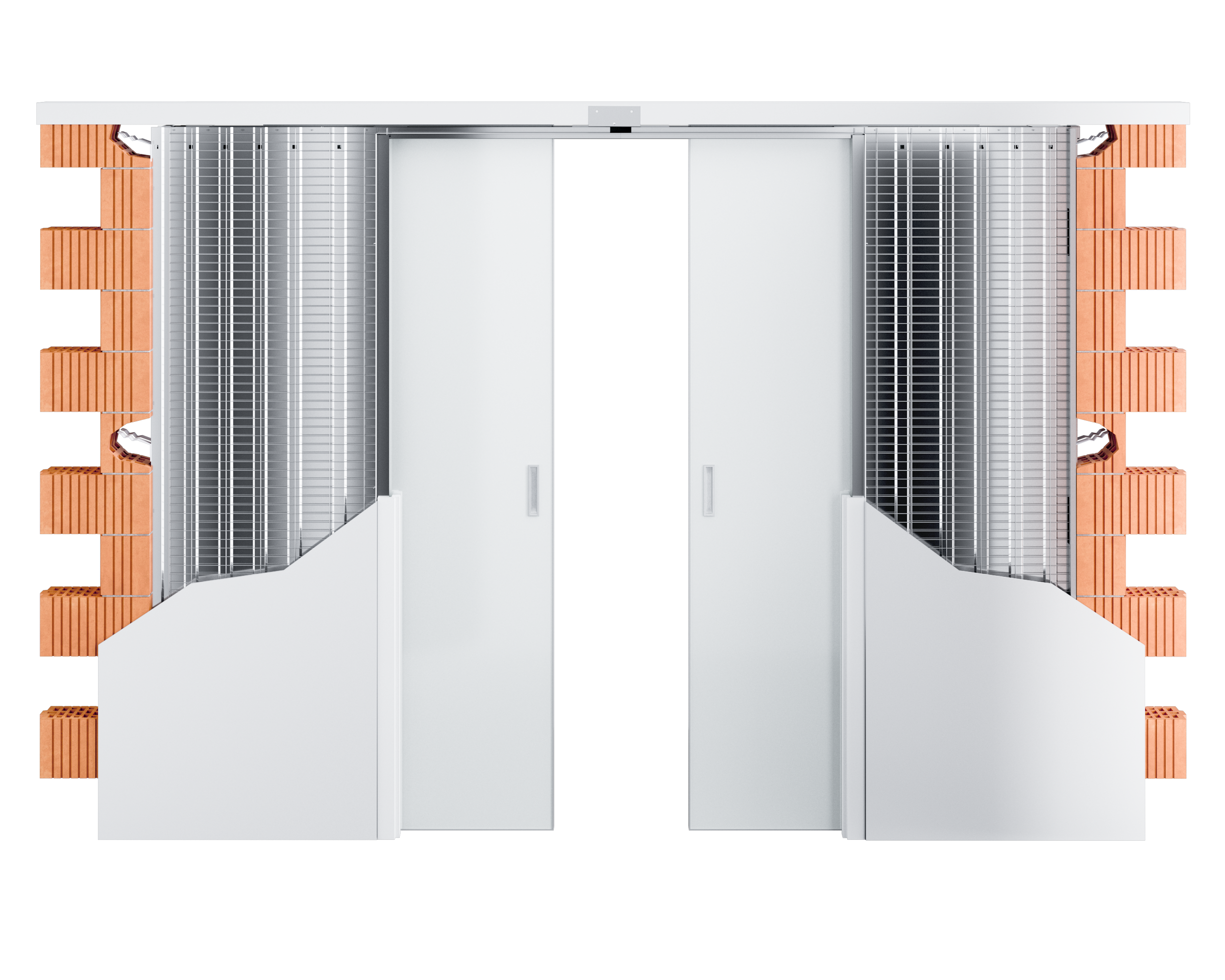

A pocket door frame designed for double-leaf sliding doors, where the traditional wooden door frame is flush with the wall contour and the upper joint between the parts is butt welded. Movement of the leaves can also be synchronized, so both leaves can be opened or closed simultaneously. This pocket door frame allows installation of a lined door frame flush with the neighbouring partition and is intended for a lined door frame 15 mm thick. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load. The casing is designed to extend the range of Latente counter-frames for hinged doors.

The Latente Komfort casing is compatible with all makes of door and is for wooden, all-glass, Master or Idea doors. The entire pocket door frame is made of quality galvanized sheet metal.

• Intended for a minimum finished partition thickness of 125 mm or 150 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• a synchronized sliding mechanism is included in the price,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

At extra charge:

• to mount an all-glass door leaf, a Vetro 22 fixture must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium rail

• not painted
