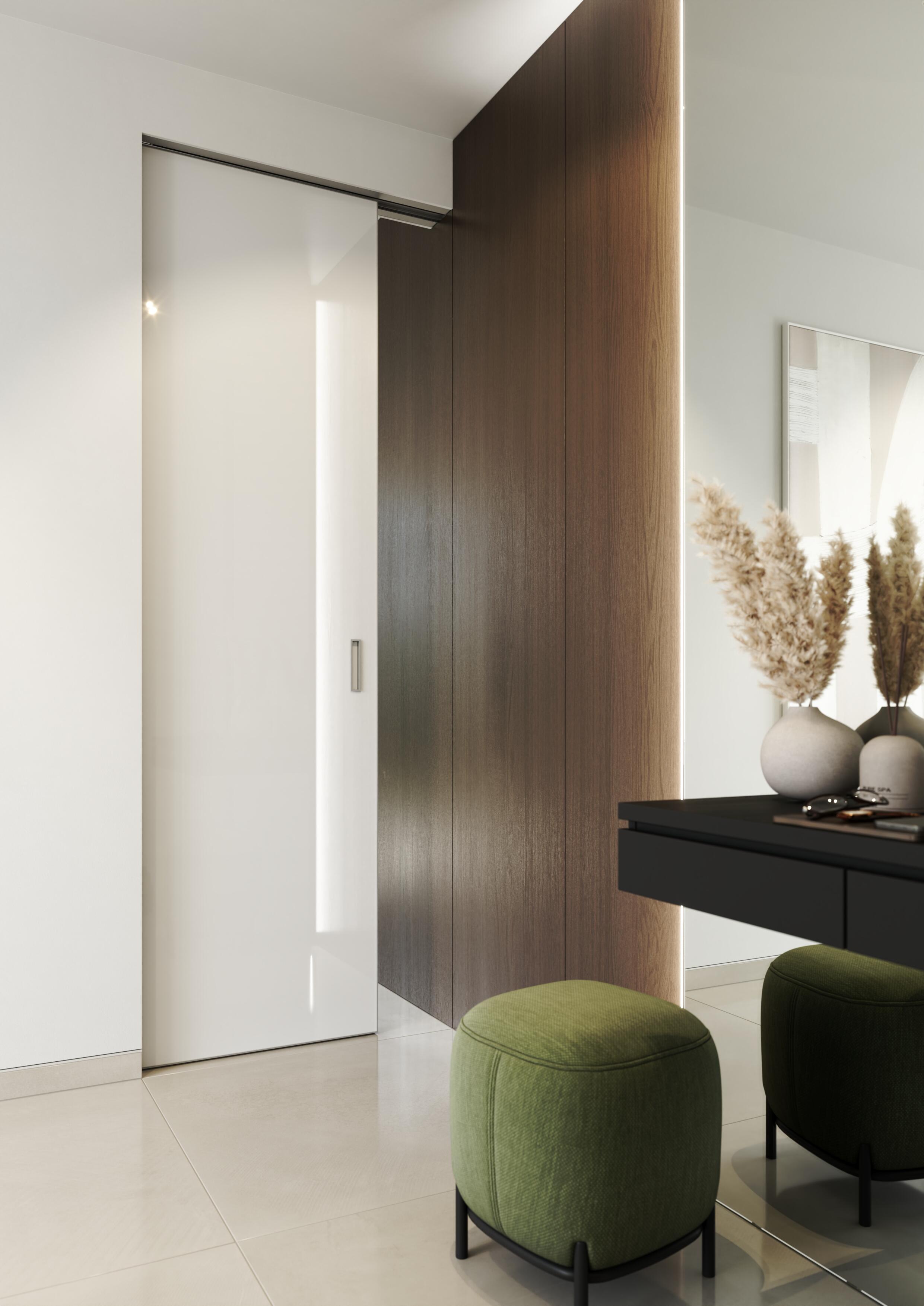

Aktive II Standard without frame

This model is a construction pocket for slide-in single-leaf doors entirely without door frames – unlined pocket door frame (passage around the doors is not limited by anything). An unlined pocket door frame for single-leaf sliding doors that perfectly respects the clean, modern lines of the wall. The casing is adapted such that its hidden construction creates the edge of the passage opening, and if the customer wishes, can be hidden under the finish surfacing of the partition. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load.

The Aktive II Standard casing without a frame is intended for wooden, all-glass, Master or Idea doors. Aktive II Standard casings are designed to extend the range of Aktive concealed door frames for hinged doors. Entire casing made of quality galvanized sheet metal and aluminium profile.

• Intended for a minimum finished partition thickness of 125 mm or 150 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

At extra charge:

• we lacquer according to the RAL K7 and NCS swatch books
• for suspension of the door leaf, an assembly kit for wooden or glass doors must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

• galvanized sheet metal
• aluminium profiles
• aluminium rail

Painted according to swatch book at extra charge

• RAL K7
• NCS
