Emotive II Standard

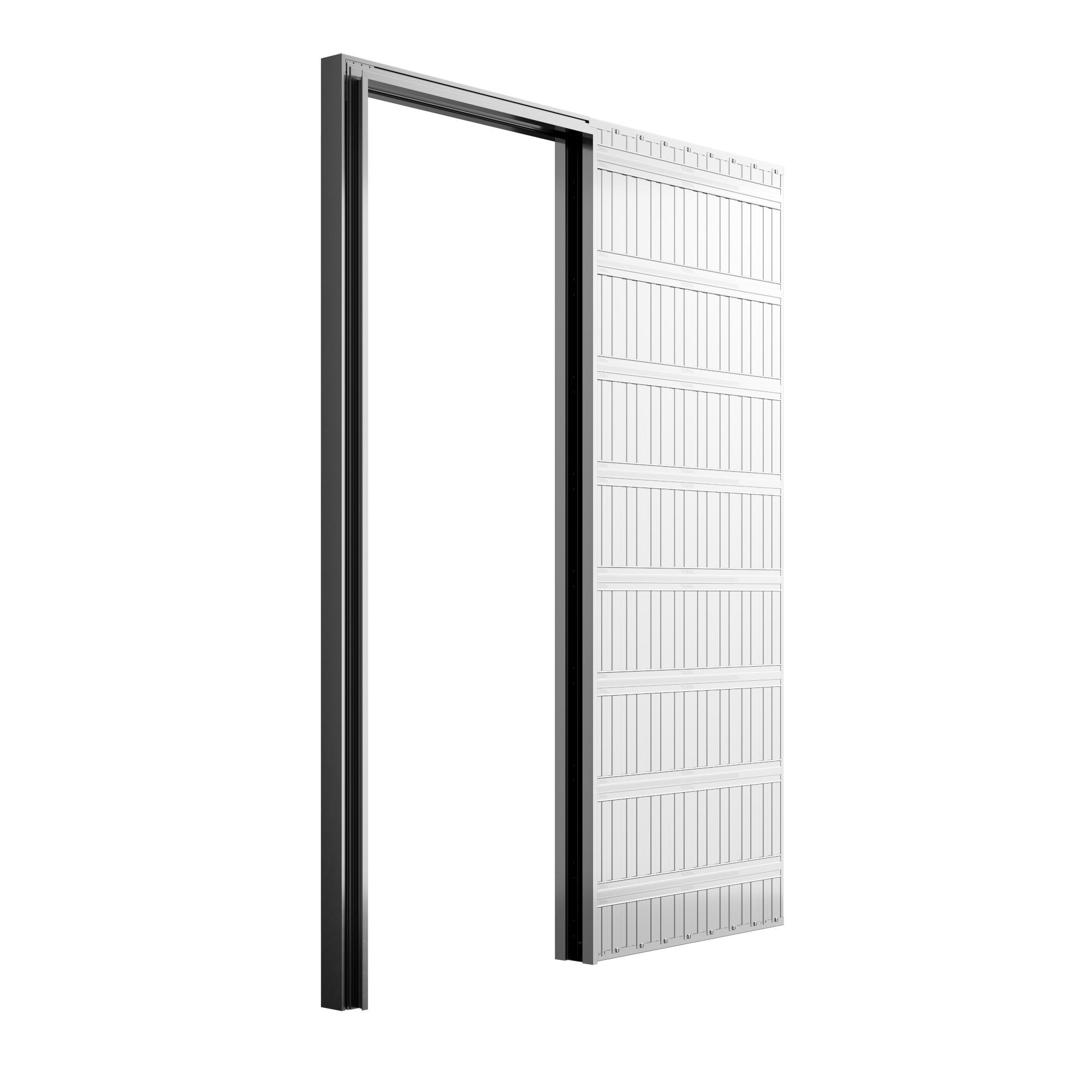

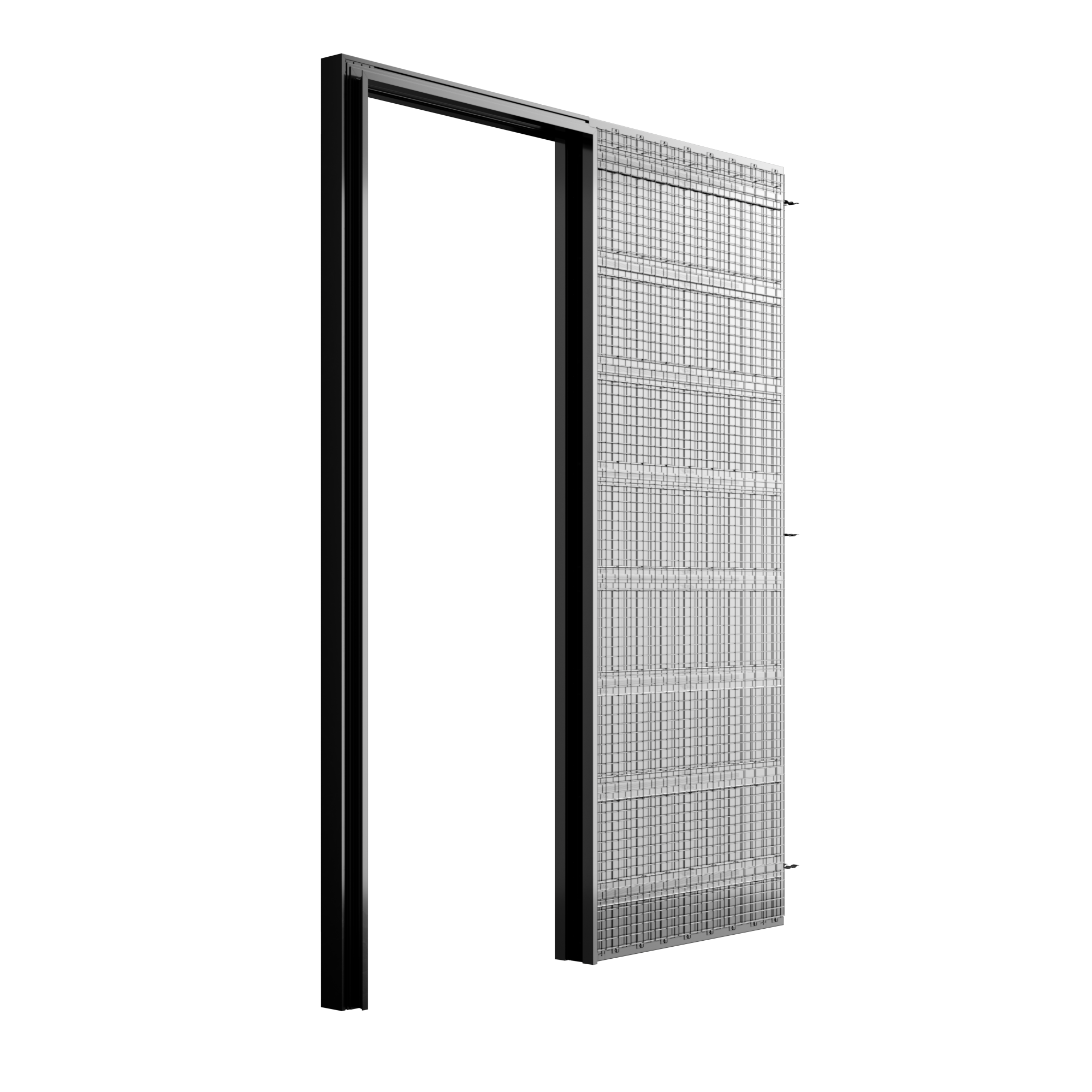

A casing that allows replacement of a traditional lining with a designer aluminium frame 17 mm wide, which is considered a decorative element that also protects the edge of the door passage. Unlined door frame without lining for single-leaf sliding doors. The Emotive Standard casing can be used in all makes of partitions. The clean, modern lines of these unlined door frames, without lining, are an extension of the Emotive concealed door frame line for hinged doors. The Emotive II Standard casing is for wooden, all-glass, Master or Idea doors. Entire casing made of quality galvanized sheet metal and aluminium profile. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load.

• Intended for a minimum finished partition thickness of 125 mm or 150 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

At extra charge:

• we lacquer according to the RAL K7 and NCS swatch books
• for suspension of the door leaf, an assembly kit for wooden or glass doors must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium profiles
• aluminium rail

Painted according to swatch book at extra charge

• RAL K7
• NCS
