Latente Standard

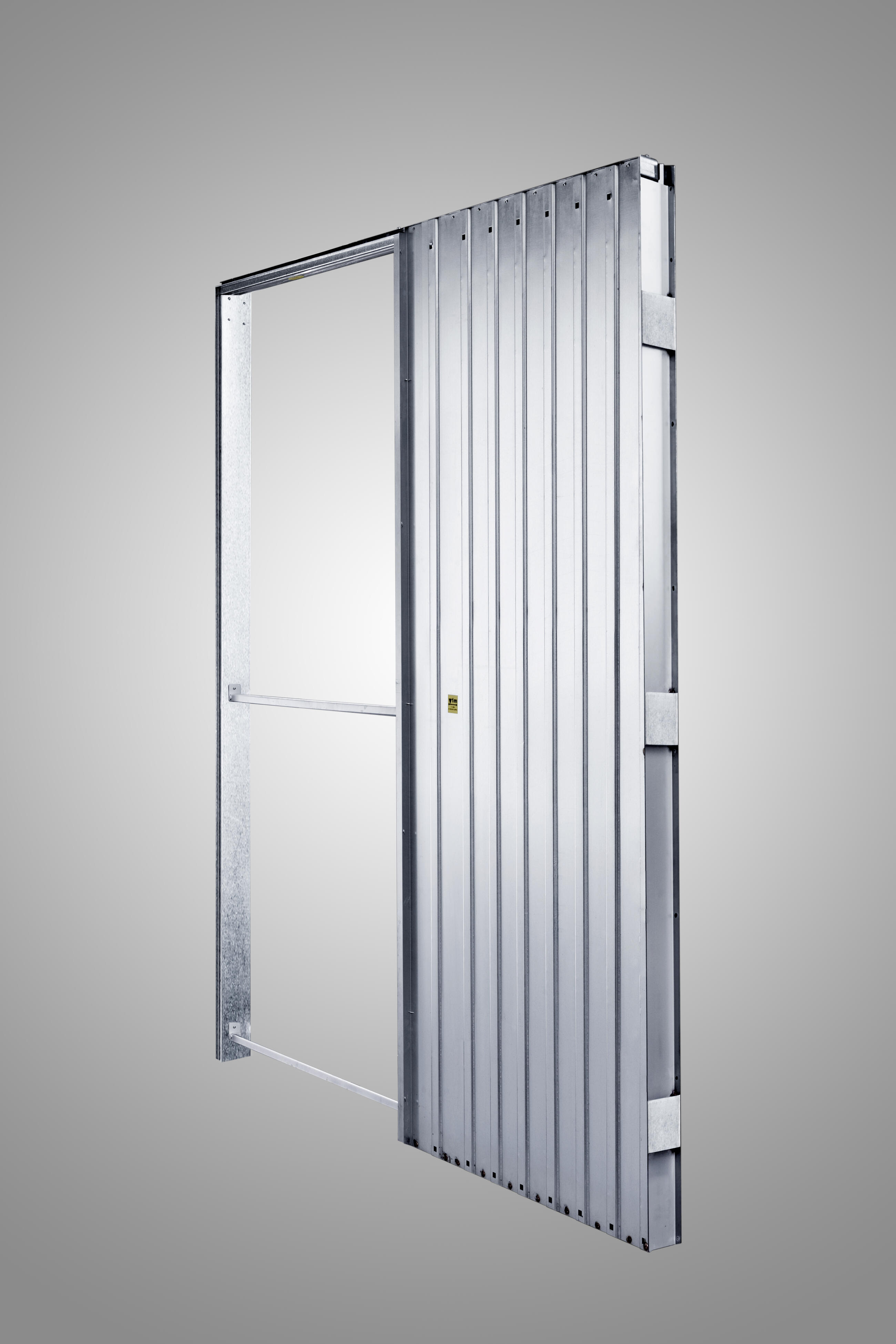

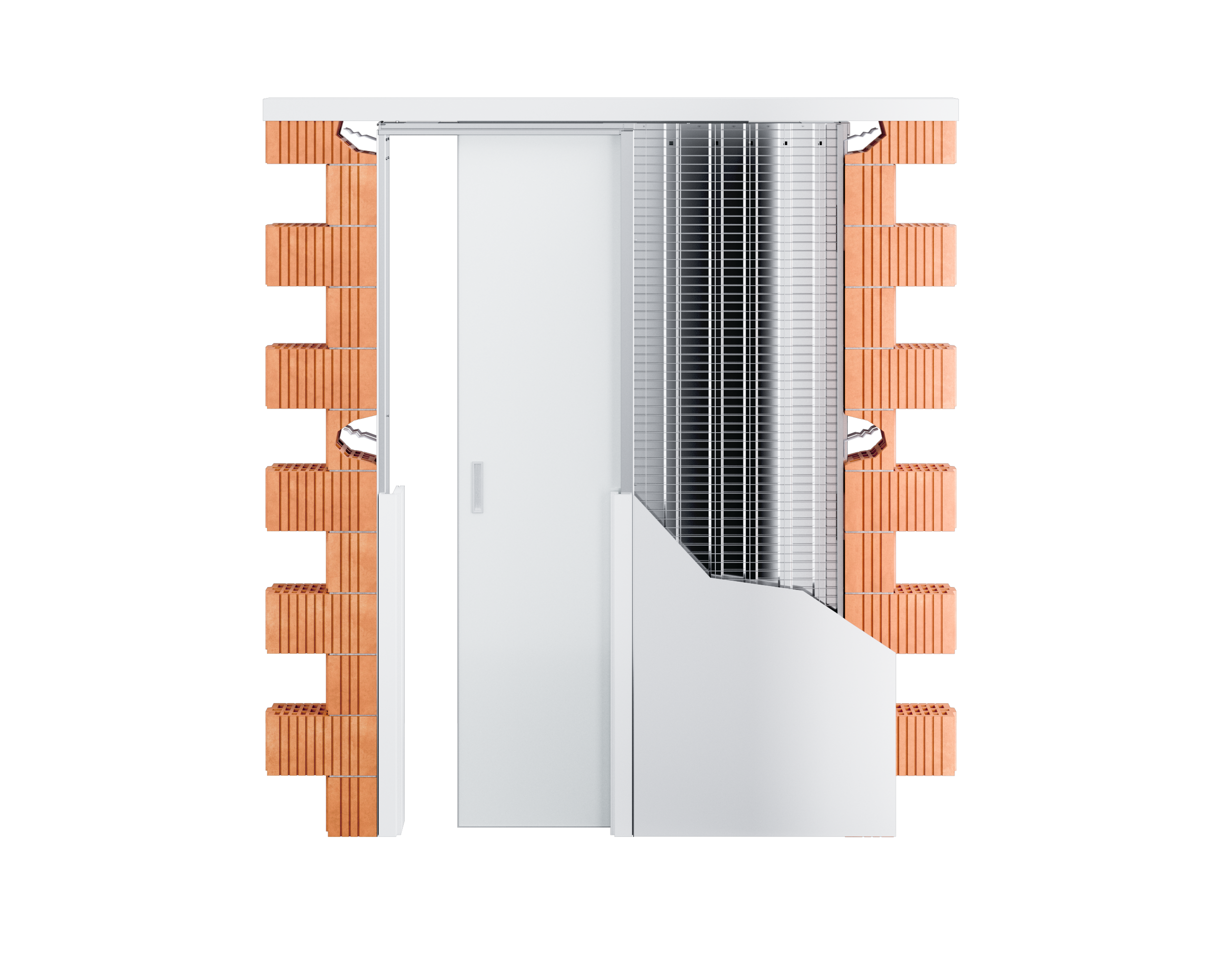

A pocket door frame designed for single-leaf sliding doors, where the traditional wooden door frame is flush with the wall contour and the upper joint between the parts is butt welded. The Latente Standard partition can be used in any type of partition, i.e. masonry, drywall and other dry construction systems. Intended for 15 mm thick lined door frames. The Latente Standard pocket door frame is designed to extend the range of Latente counter-frames for hinged doors. Custom dimensions available to heights of 2,700 mm. The casing is compatible with all makes of door and is for wooden, all-glass, Master or Idea doors. Entire casing made of quality galvanized sheet metal and aluminium profile. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load.

• Intended for a minimum finished partition thickness of 125 mm or 150 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• lining widths 50 & 65 mm,
• removable rail,
• adjustable front and rear stop,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

At extra charge:

• to mount an all-glass door leaf, a Vetro 22 fixture must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium rail

• not painted
