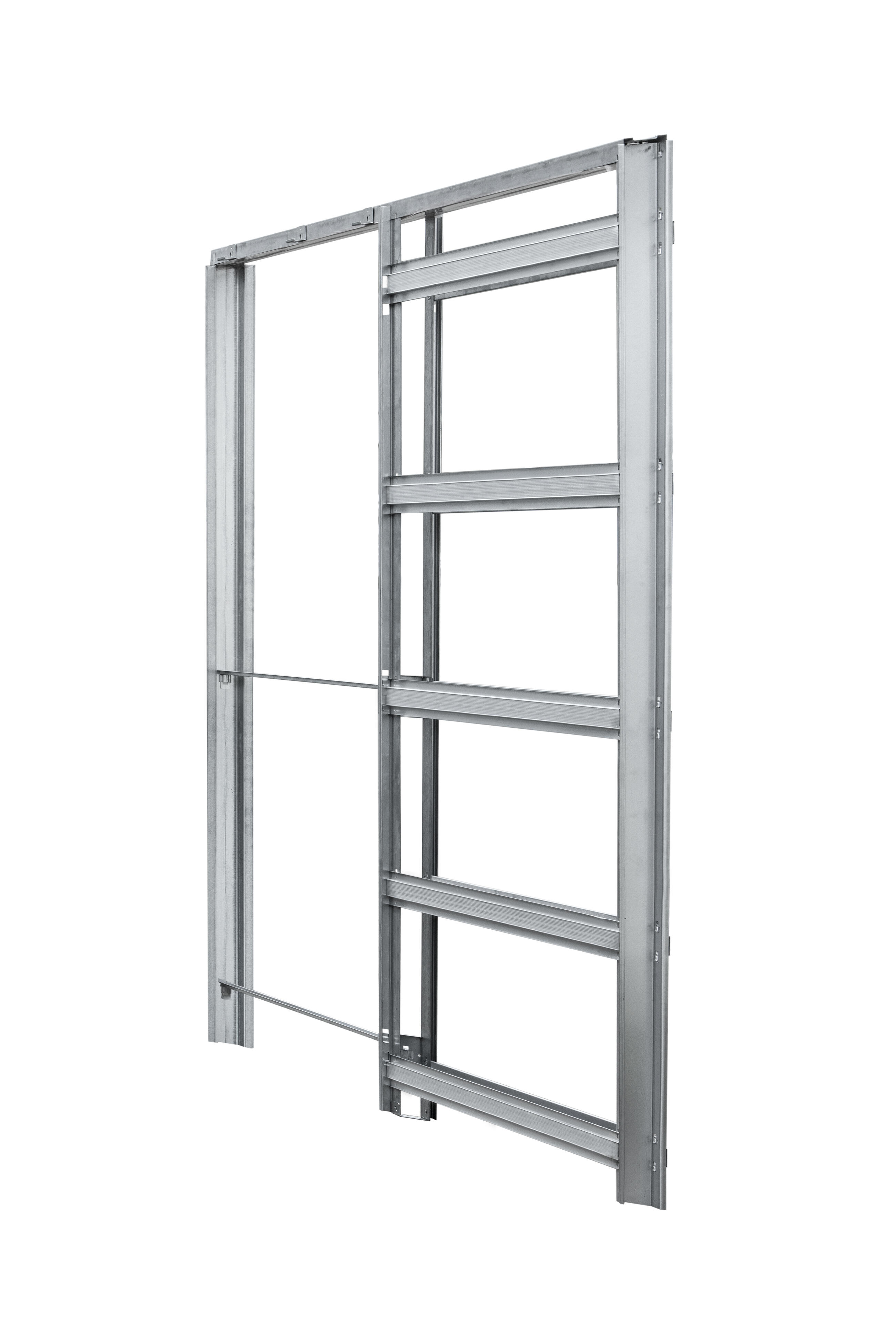

Profikit Standard

The Profikit Standard casing is intended for sliding single-leaf doors. It is designed such that the casing can be delivered dismantled in an easily transportable package. Unlike Norma, the Profikit casing is made up of individual parts without a solid side panel. The casing itself is then assembled right at the building site. Assembly is very simple and works by sliding and snapping prepared joints (nothing to screw or drill). One big advantage is that it takes up one-sixth the space of the current Norma Standard pocket door frame and is easier to handle on the construction site.

Profikit Standard is compatible with all makes of door. It is suitable for wooden doors, all-glass doors, Master and Idea. The casing’s functionality is exactly like the Norma Standard pocket door frame — only its lightweight design is different, and it can be installed only in drywall partitions. The pocket door frame cannot bear a load. The Profikit casing is not available in custom dimensions.

• Intended for a minimum finished partition thickness of 100 mm or 125 mm,
• used only for drywall
• maximum weight of each door leaf 60 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• sliding mechanisms and fixtures for wooden doors are part of the casing,
• lifetime warranty.

At extra charge:

• to mount an all-glass door leaf, a Vetro 22 fixture must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium profiles
• aluminium rail

• not painted
